Resources

The documents this site was written from

Nine engineering documents plus the project README, copied into this site at build time so a claim on a marketing page and the evidence behind it cannot drift apart. Every byte count in the table is the size of the copy being served, read at build time.

Document set

Plain markdown, served from this origin

10 files · 108,659 bytes total · copied from nodavx.com/docs/ on 2026-10-18. No document portal, no third-party host, no login.

FileWhat it settlesKindSize
ARCHITECTURE.md Architecture
The single-authority decision, the request path, the snapshot contract, and why there is no cache allowed to be right.		 DESIGN 11,721 B
LIVE_STATE.md Live state protocol
How a committed write reaches an open tab: invalidation-only SSE, the cursor, the out-of-band watcher, and every section naming the file to read.		 DESIGN 6,603 B
ONTOLOGY.md Ontology
Object types, link types with cardinality, action types, identity rules, and the storage envelope versus the flexible payload.		 DESIGN 9,518 B
VALIDATION.md Validation
Every latency, frame-rate and journey result in this build, each with its reproducing command, and an explicit list of what was not measured.		 EVIDENCE 24,172 B
BUILD_STATUS.md Build status
Milestone-by-milestone build history. The test figures on this site come from a measured run of both suites (tools/measure-atlas-tests.mjs), not from this document.		 EVIDENCE 10,188 B
DEMO_GUIDE.md Demo guide
The two mandatory stories step by step in the same order the browser journeys assert them — the source of the shortfall and margin figures quoted on this site.		 EVIDENCE 10,719 B
OPERATIONS.md Operations
Configuration, credential handling, data paths, backup and reset, written from package.json and the real tools rather than from intention.		 OPERATIONS 11,741 B
RESEARCH.md Research and versions
Version and licence claims with the label attached: measured on this machine, or vendor-claimed and unverified.		 EVIDENCE 7,360 B
ROADMAP.md Roadmap
What is deliberately after M6 and not built, each item stating what exists today so the next step is concrete.		 DESIGN 5,742 B
README.md Project README
What this folder is, every port the stack listens on, and the two-minute path from a clean clone to a seeded atlas.		 OPERATIONS 10,895 B

These are working documents, not brochures. Where a figure is vendor-claimed rather than measured on the build machine, the document says so and this site repeats the label instead of quietly dropping it.

Screens

The atlas, one screen per claim

Captured from the running application on this machine at 1600×1000. The launcher proves the service panel is honest; the shortfall tiles prove the arithmetic is printed; the copilot proves citations are clickable.

Workspace launcher: Two segment packs with live per-workspace counts, and a local service panel that names SurrealDB and the inference endpoint instead of hiding them.
Workspace launcher — Two segment packs with live per-workspace counts, and a local service panel that names SurrealDB and the inference endpoint instead of hiding them.

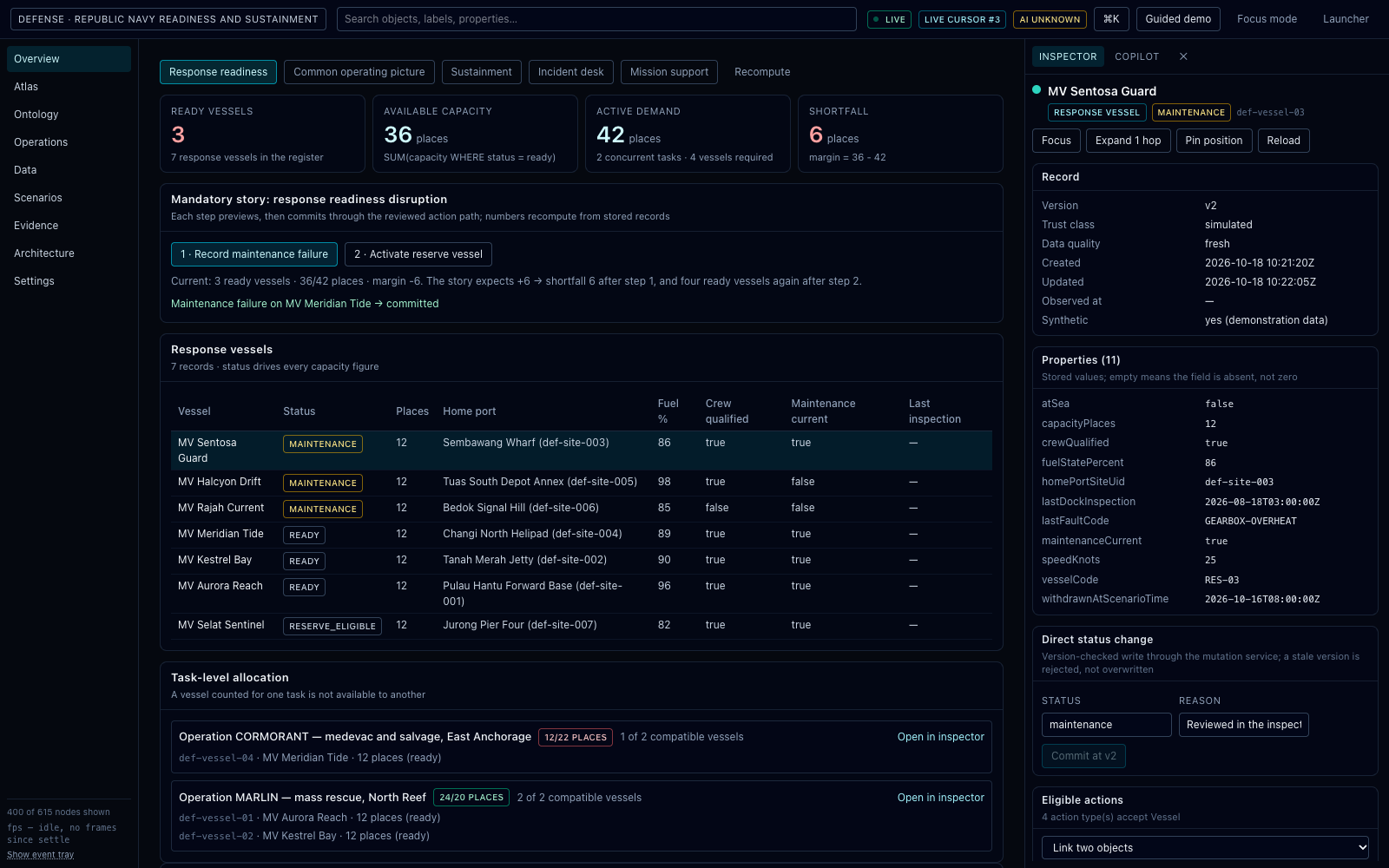

Readiness margin flips to −6: After the maintenance failure: 3 ready vessels, 48 places of capacity against 42 demanded, and a Shortfall tile that prints its own subtraction.
Readiness margin flips to −6 — After the maintenance failure: 3 ready vessels, 48 places of capacity against 42 demanded, and a Shortfall tile that prints its own subtraction.

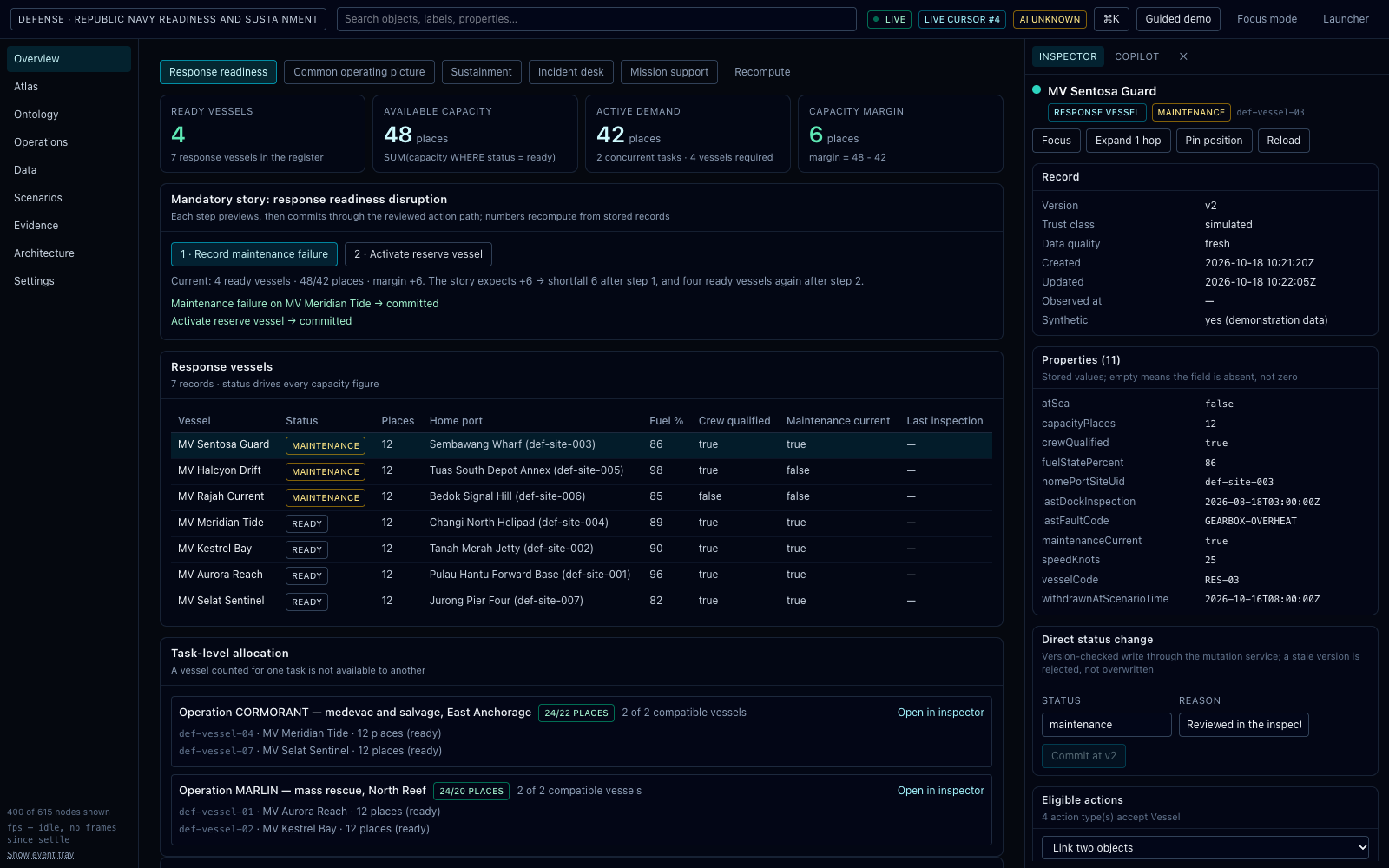

Margin restored to +6: Reserve vessel committed. Same tab, no reload — the journal cursor advances and the mission list stops crediting the broken platform.
Margin restored to +6 — Reserve vessel committed. Same tab, no reload — the journal cursor advances and the mission list stops crediting the broken platform.

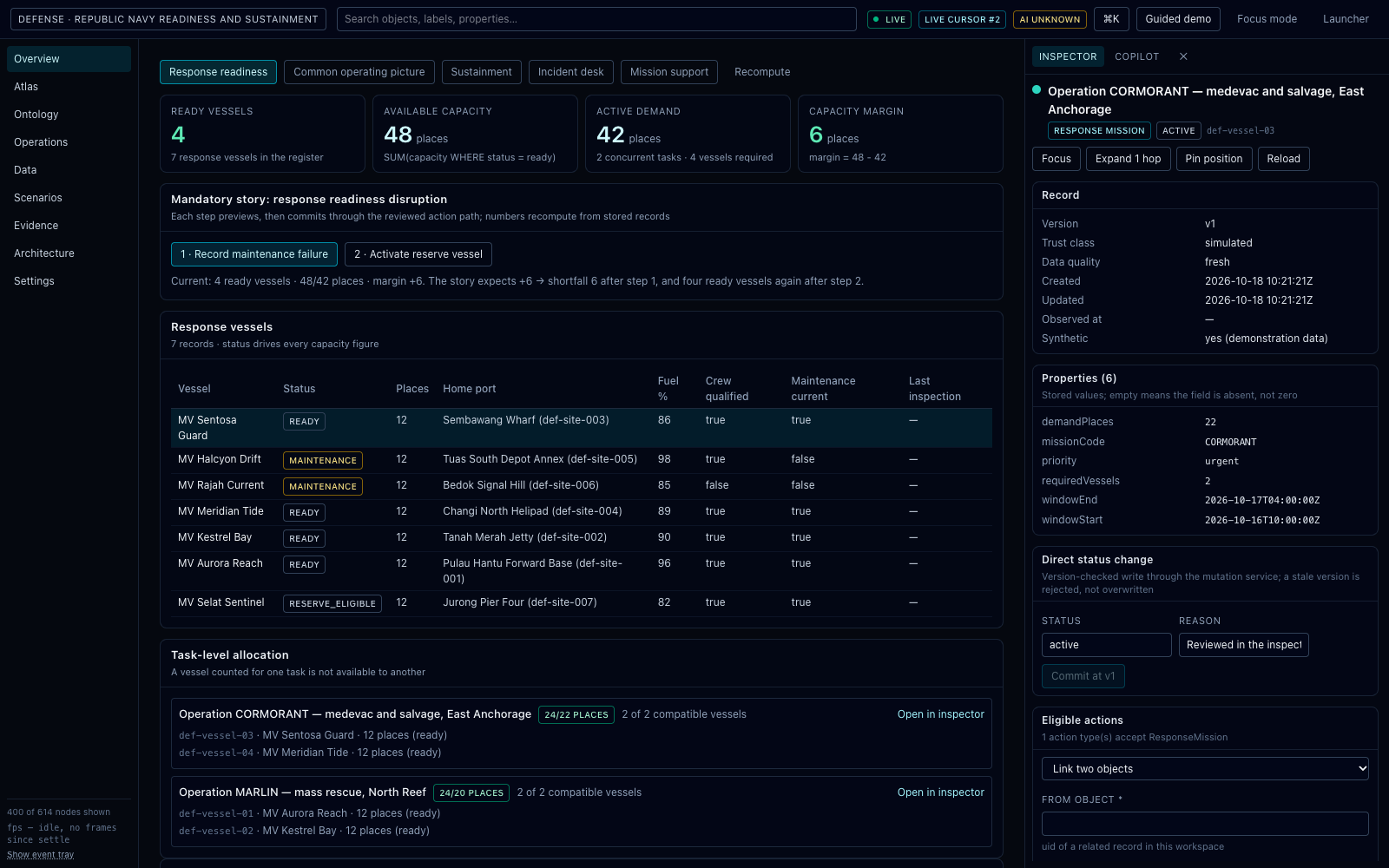

Object inspector: One platform as records: status, capacity, maintenance history and the links that place it in a mission.
Object inspector — One platform as records: status, capacity, maintenance history and the links that place it in a mission.

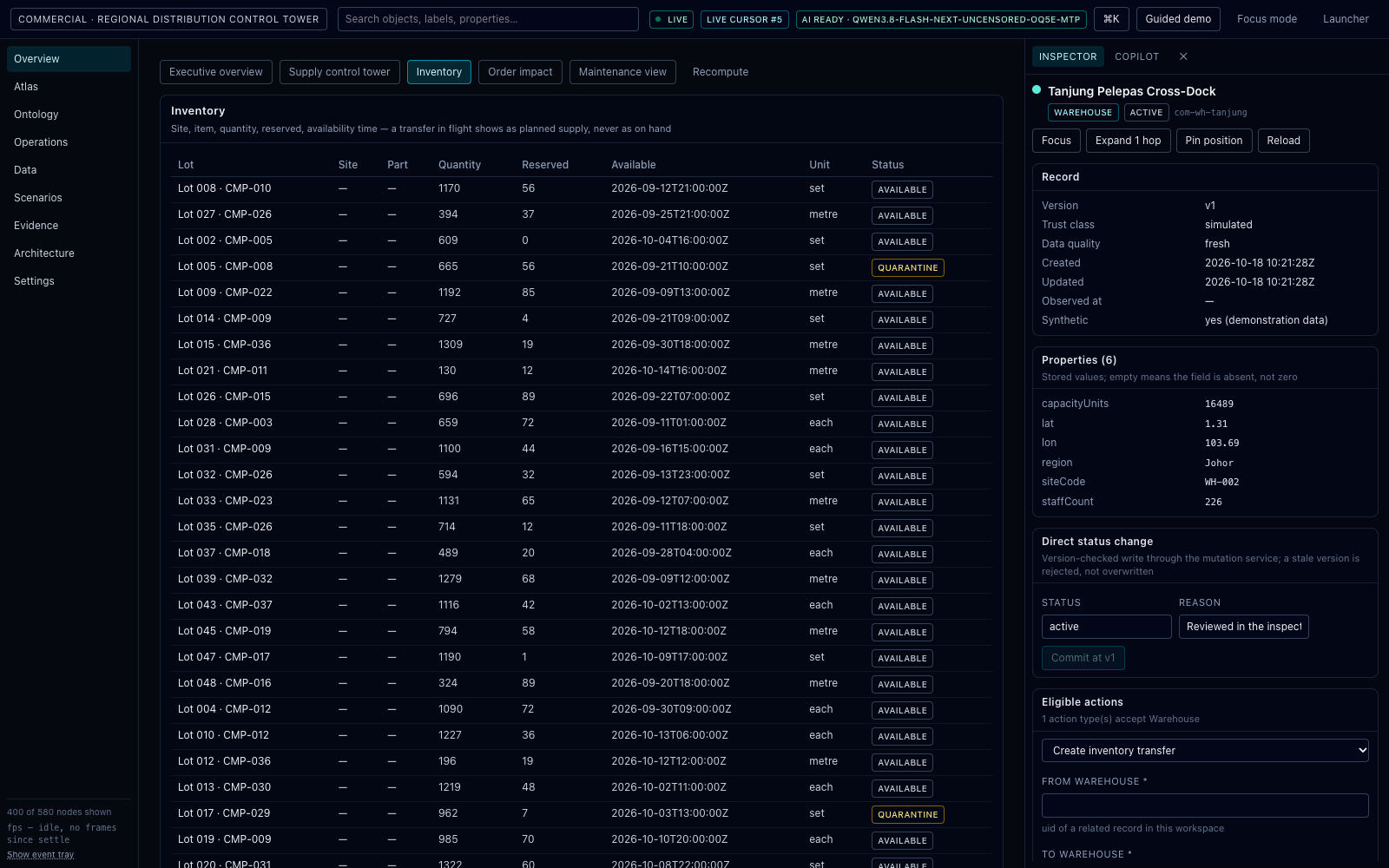

On hand versus planned supply: A transfer in transit is planned supply, never stock: on hand stays 80 units while planned supply rises to 140.
On hand versus planned supply — A transfer in transit is planned supply, never stock: on hand stays 80 units while planned supply rises to 140.

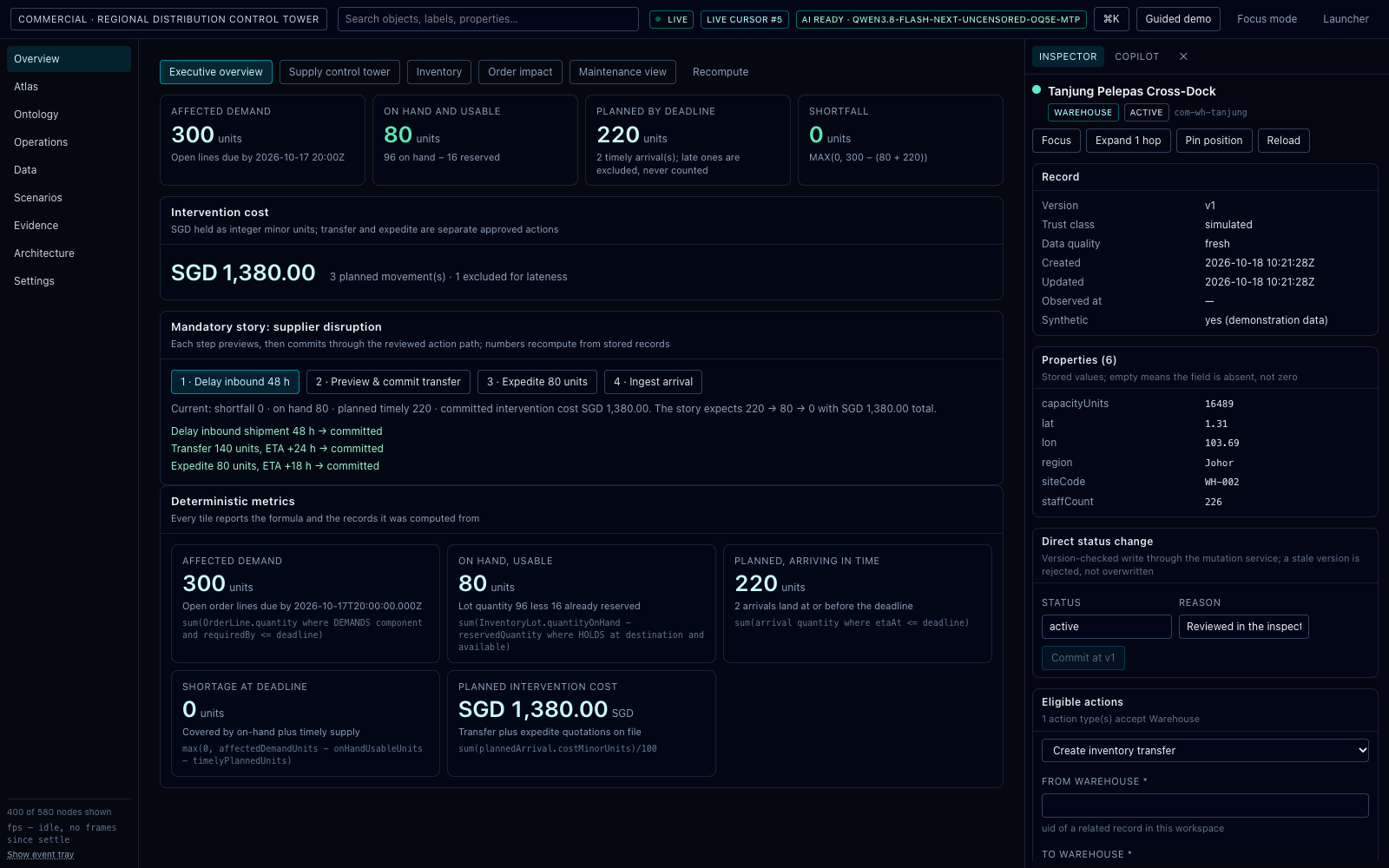

Shortfall closed at zero: After the transfer and the expedite, with the committed intervention cost of SGD 1,380.00 held as integer minor units.
Shortfall closed at zero — After the transfer and the expedite, with the committed intervention cost of SGD 1,380.00 held as integer minor units.

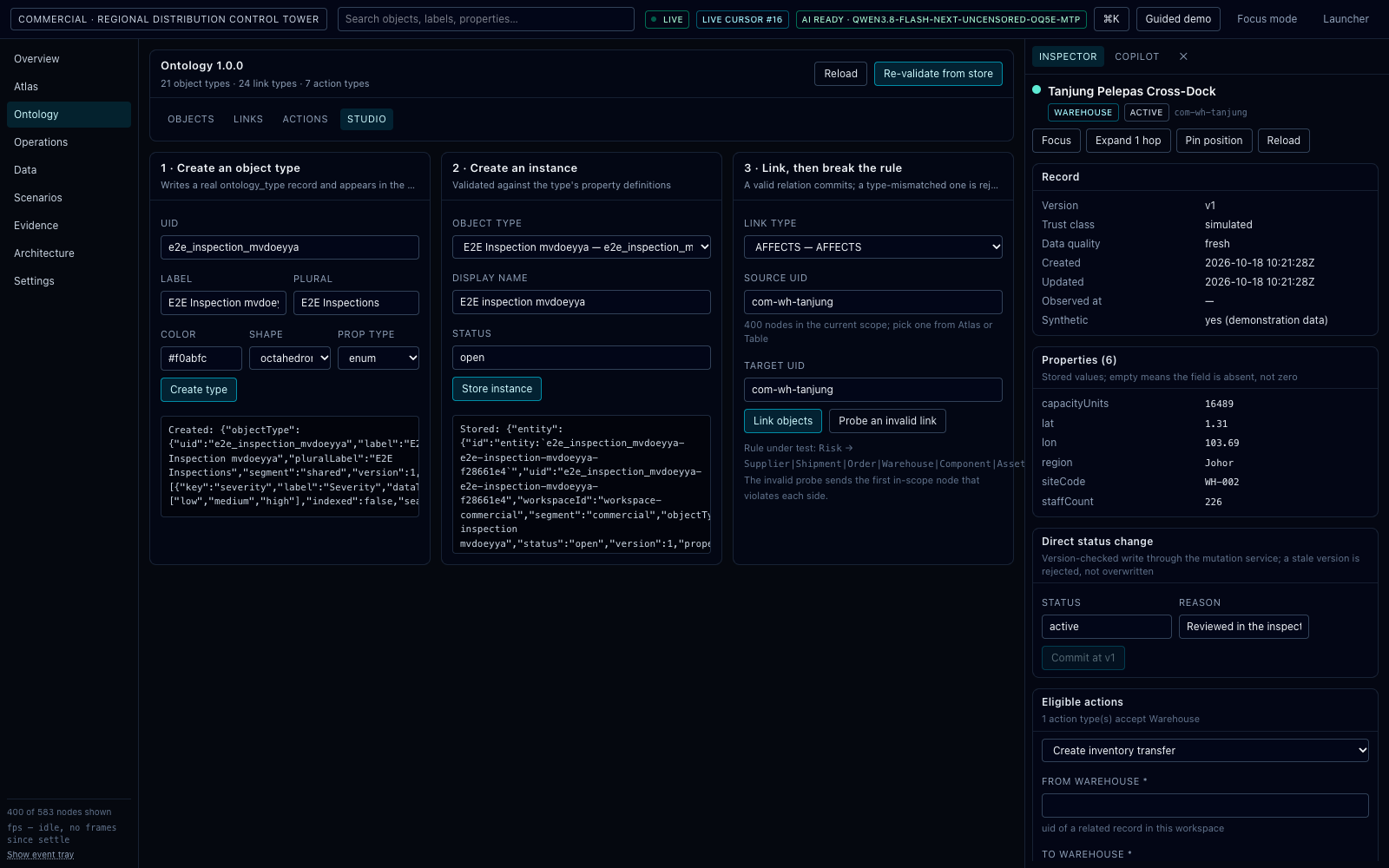

Ontology Studio: Object types and link types as editable records with cardinality rules — the model is stored data you can query.
Ontology Studio — Object types and link types as editable records with cardinality rules — the model is stored data you can query.

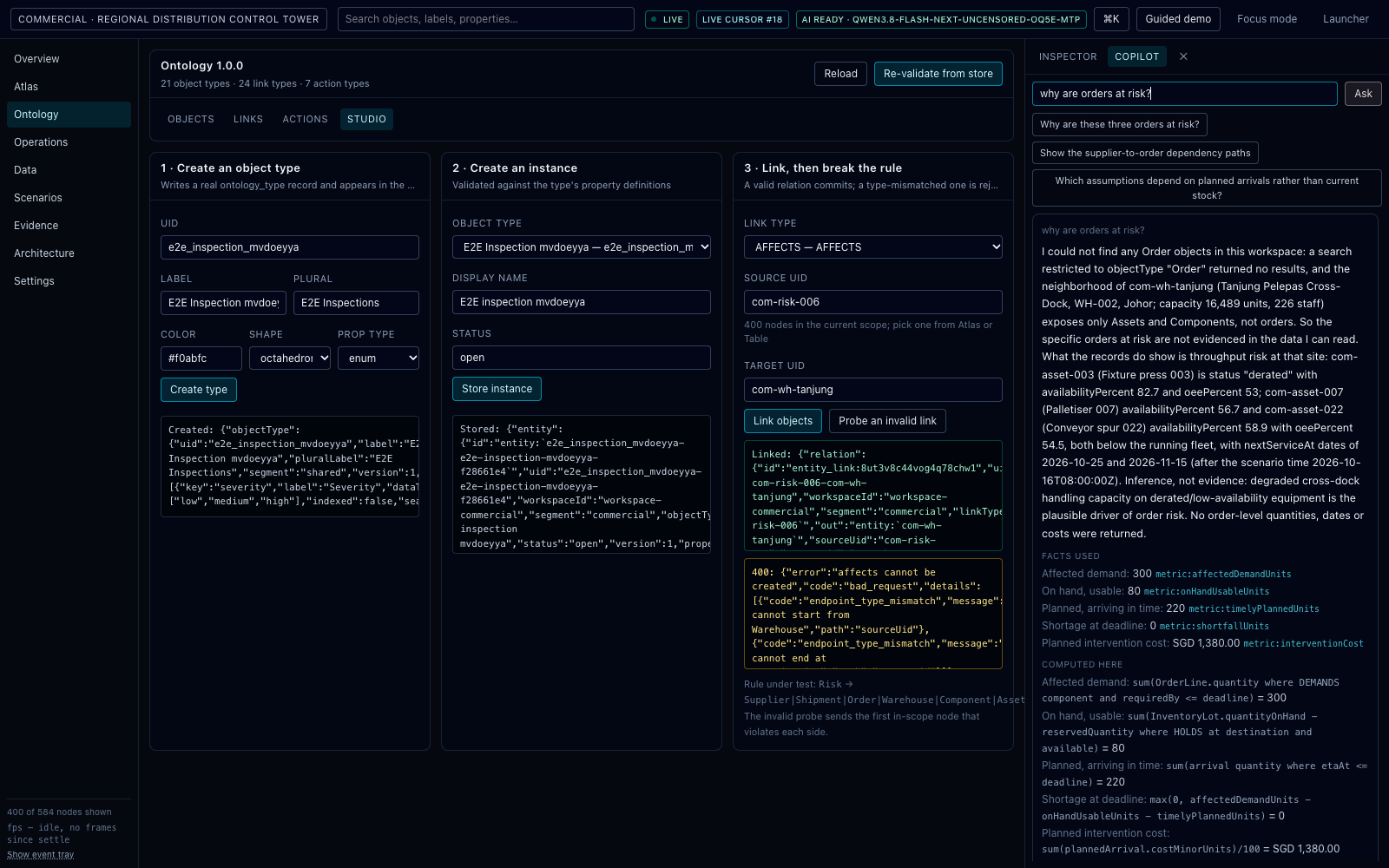

Copilot with citations: A grounded answer whose citations each select an object, with status, model name and elapsed milliseconds printed in the footer.
Copilot with citations — A grounded answer whose citations each select an object, with status, model name and elapsed milliseconds printed in the footer.

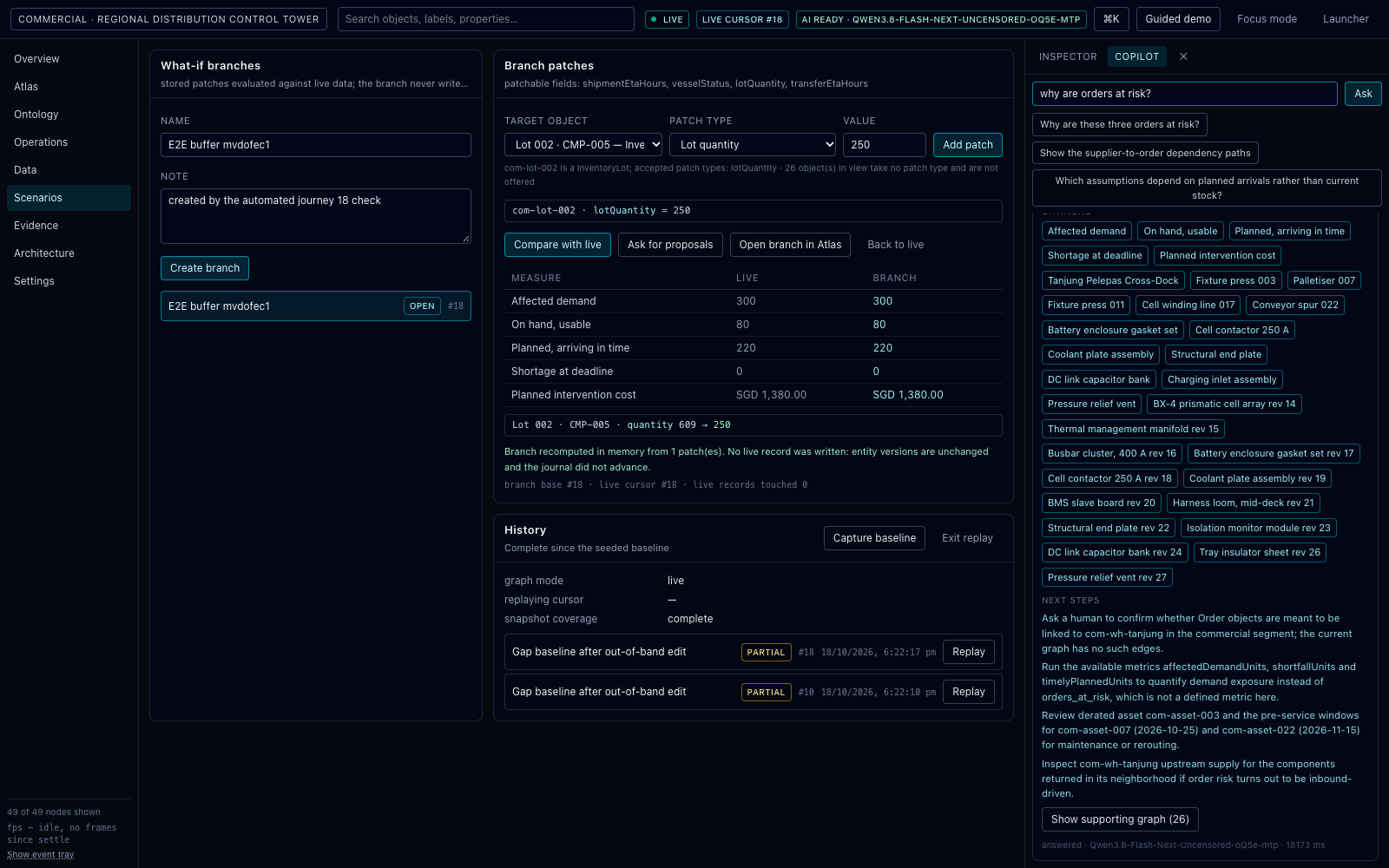

Branch compare: A scenario branch beside reality, so a what-if is judged before it becomes a commit.
Branch compare — A scenario branch beside reality, so a what-if is judged before it becomes a commit.
Ingestion rejects: Invalid arrivals refused with named reasons rather than coerced into a shape that would pass.
Ingestion rejects — Invalid arrivals refused with named reasons rather than coerced into a shape that would pass.
Keyboard-first navigation: Every primary journey is reachable without a pointer, including selection and the inspector.
Keyboard-first navigation — Every primary journey is reachable without a pointer, including selection and the inspector.

If you want to go deeper

Three ways in, depending on what you are checking

Pick the door that matches the question you were asked.

“Is it fast enough?”

VALIDATION.md, then the measured performance summary with the same figures in context.

“Is the model real?”

ONTOLOGY.md for types and cardinality, plus the object coverage table counted live from the store.

“Can we run it?”

OPERATIONS.md for ports, credentials and reset, then README.md to boot it.

Prefer to be shown, not to read?

Fifteen minutes on the two stories, on a call, with your own question put to the copilot at the end.

Request Demo Open the atlas
